ex studs

Post by carlos »

Hi can anyone tell me the size of ex, manifold studs please for a 2.2 Excel se 1989 Thanks

User avatar
Hawaiis0
Senior Poster
Posts: 2961
Joined: Sun Jun 30, 2013 18:39
Location: Off Grid

Re: ex studs

Post by Hawaiis0 »

M10 for SE HC engines M8 for earlier models.

Change over point from engine number 23749.
VIN 89 D 2408
VIN 89 - 0389
Umm! What to do next?

carlos
Junior Poster
Posts: 39
Joined: Sat Aug 27, 2016 17:29
Model: Excel se
Colour: Monaco white
Year: 1989
Location: Derby

Re: ex studs

Post by carlos »

Thanks for prompt reply :D

AndyC
Senior Poster
Posts: 2011
Joined: Tue Nov 01, 2005 20:01
Model: SE x2 + Celebration
Colour: Gold,blue and green
Year: 1987
Location: Norwich
Contact:

Re: ex studs

Post by AndyC »

Ones from Ford are great for later cars, as they come with a spline drive end and copper nuts.

Pete Boole
Senior Poster
Posts: 1999
Joined: Tue Apr 04, 2006 21:28
Model: Elite
Colour: Monaco White
Year: 1982
Location: Nottingham

Re: ex studs

Post by Pete Boole »

AndyC wrote:
Mon May 04, 2020 20:10
Ones from Ford are great for later cars, as they come with a spline drive end and copper nuts.
Tell us more Andy!

Pete

AndyC
Senior Poster
Posts: 2011
Joined: Tue Nov 01, 2005 20:01
Model: SE x2 + Celebration
Colour: Gold,blue and green
Year: 1987
Location: Norwich
Contact:

Re: ex studs

Post by AndyC »

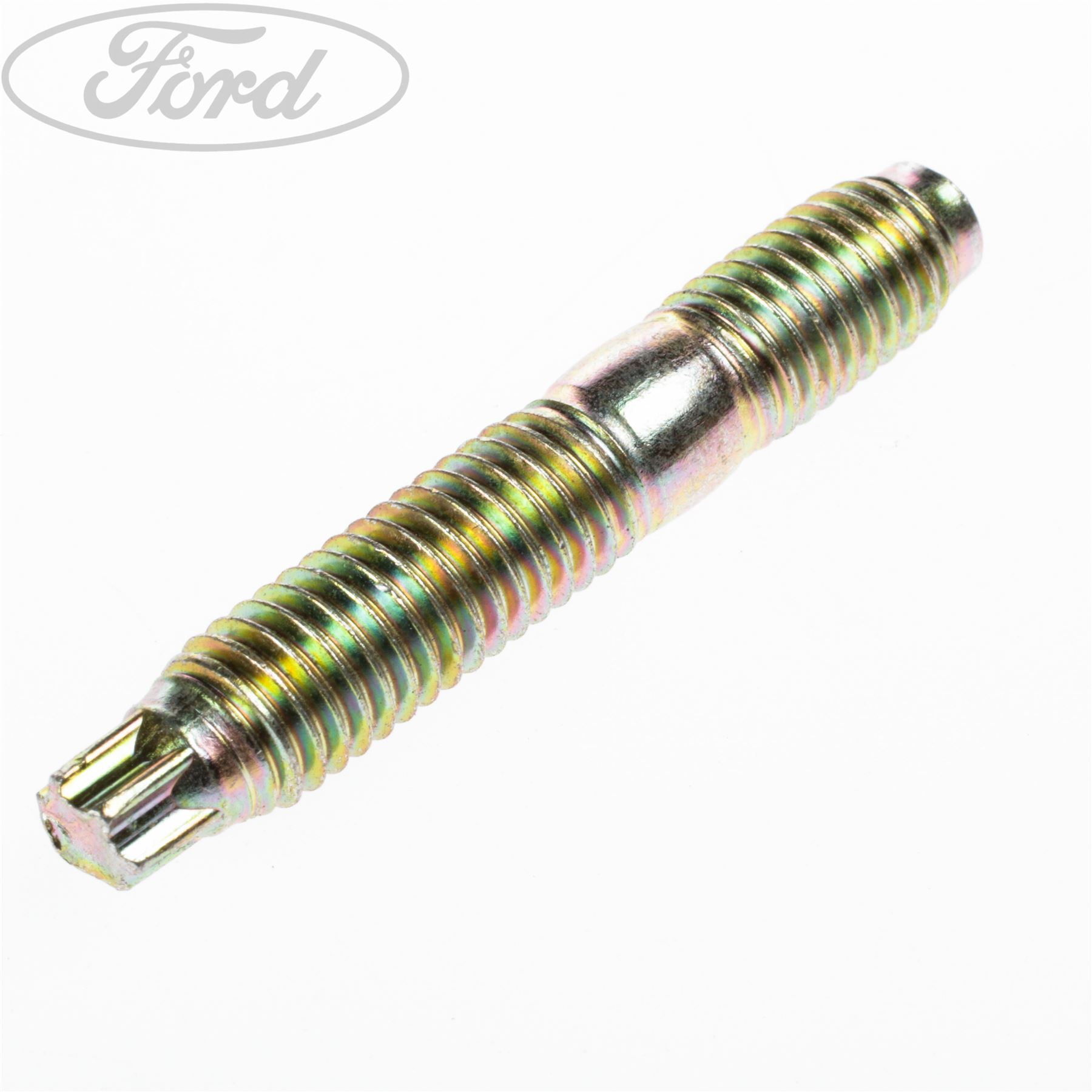

I was given some by another Lotus owner who used to work for them, then later for Ford in their engine design area. These studs make it much easier to fit them, as you don't need to do the bit of two nuts locked together in order to screw them in. The ones in question are the right length for our application,but here's an image of some Fiesta ones (which may be the wrong dimensions)

User avatar
rbgosling
Senior Poster
Posts: 987
Joined: Sun Jul 04, 2010 22:55
Model: Lotus Excel SE
Colour: Midnight Blue
Year: 1990
Location: Northampton

Re: ex studs

Post by rbgosling »

Mine is a 1990 SE, and definitely M8!! 42mm long.

Just had to replace a couple, and used these off eBay - stainless, so they won't turn into rusty stumps like the old ones. They don't have the non-threaded section in the middle, so won't position the manifold with quite such micron accuracy as the originals, but a) I don't think that really matters, and b) with only 2 out of 12 studs like this it makes no difference.


"Farmer" Richard

1990 Lotus Excel SE (Lilith)
2004 Jaguar X-Type Estate

User avatar
Lotus-e-Clan
Senior Poster
Posts: 3835
Joined: Thu Nov 30, 2006 13:25
Model: Excel SE - EWP/Waterless!
Colour: Not Blue or Green
Year: 1989
Location: Swaledale

Re: ex studs

Post by Lotus-e-Clan »

'89 SE with new M8 stainless studs from Gary Kemp. Replaced all mine about 3 years ago when the engine was out for a clutch.

I have a set of stud extractor sockets so have no need for a spline type fitting. In my experience exhaust studs can require a lot of torque to remove so I would suspect it would be a challenge to remove them after years in-service using only a torx tool ..great for quick, damage-free, assembly on a factory line mind, and you can still use stud sockets when it's time to remove them so no real problem using either type.
Peter K

User avatar
Hawaiis0
Senior Poster
Posts: 2961
Joined: Sun Jun 30, 2013 18:39
Location: Off Grid

Re: ex studs

Post by Hawaiis0 »

rbgosling wrote:
Tue May 05, 2020 08:33
Mine is a 1990 SE, and definitely M8!! 42mm long.

What is your engine number if you dont mind. All SEs should be M10 according to book.

Umm! What to do next?

Pete Boole
Senior Poster
Posts: 1999
Joined: Tue Apr 04, 2006 21:28
Model: Elite
Colour: Monaco White
Year: 1982
Location: Nottingham

Re: ex studs

Post by Pete Boole »

Are we mixing up manifold to head and manifold to downpipe? :wink:

Pete

User avatar
rbgosling
Senior Poster
Posts: 987
Joined: Sun Jul 04, 2010 22:55
Model: Lotus Excel SE
Colour: Midnight Blue
Year: 1990
Location: Northampton

Re: ex studs

Post by rbgosling »

Pete Boole wrote:
Tue May 05, 2020 17:58
Are we mixing up manifold to head and manifold to downpipe? :wink:

Pete
Think you’ve hit the nail on the head there Pete!
"Farmer" Richard

1990 Lotus Excel SE (Lilith)
2004 Jaguar X-Type Estate

User avatar
Hawaiis0
Senior Poster
Posts: 2961
Joined: Sun Jun 30, 2013 18:39
Location: Off Grid

Re: ex studs

Post by Hawaiis0 »

Sorry carlos made a mistake
:oops: :oops: :oops: :oops: :oops: :oops: :oops: :oops: :oops:

The studs aren't identified by size in the parts (my version) manual, only part number. The nuts are though and as pointed out are M8.
Umm! What to do next?
